AISG C485 Free Connector Assembly Male End 8 Pins M16 Circular Connectors

Description

All components of AISG circular connector male end for assembling AISG control cable, RET cable, or other industrial control cables with M16 circular connector.

• Produced according to AISG C485.

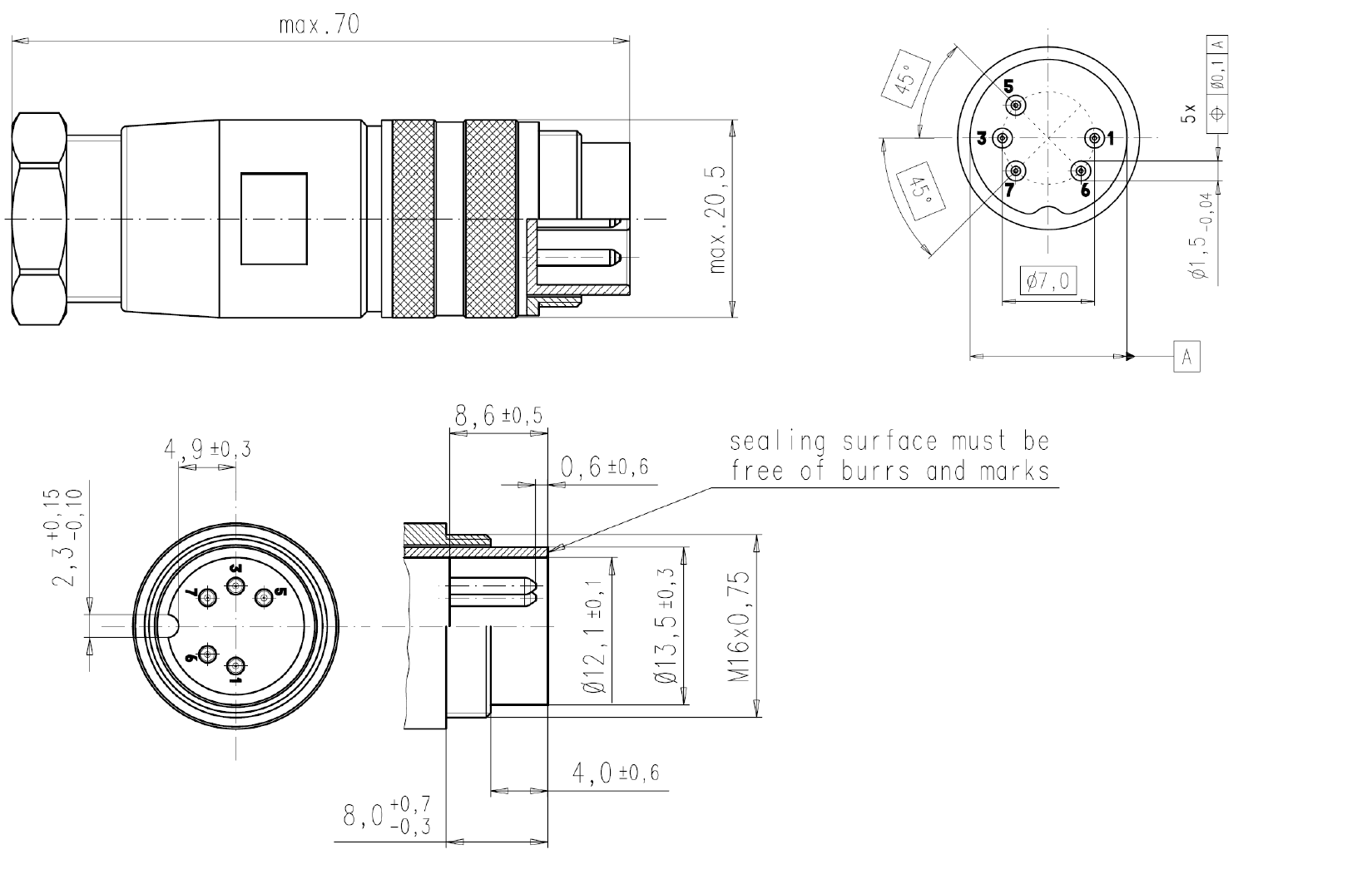

• Pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a.
• Insulation resistance: ≥5MΩ
• Contact resistance:≤5mΩ
• The male pins 2, 4 and 8 are not in use for AISG applications, pin 1 shall not be used for new constructions. For other purposes, please contact sales.

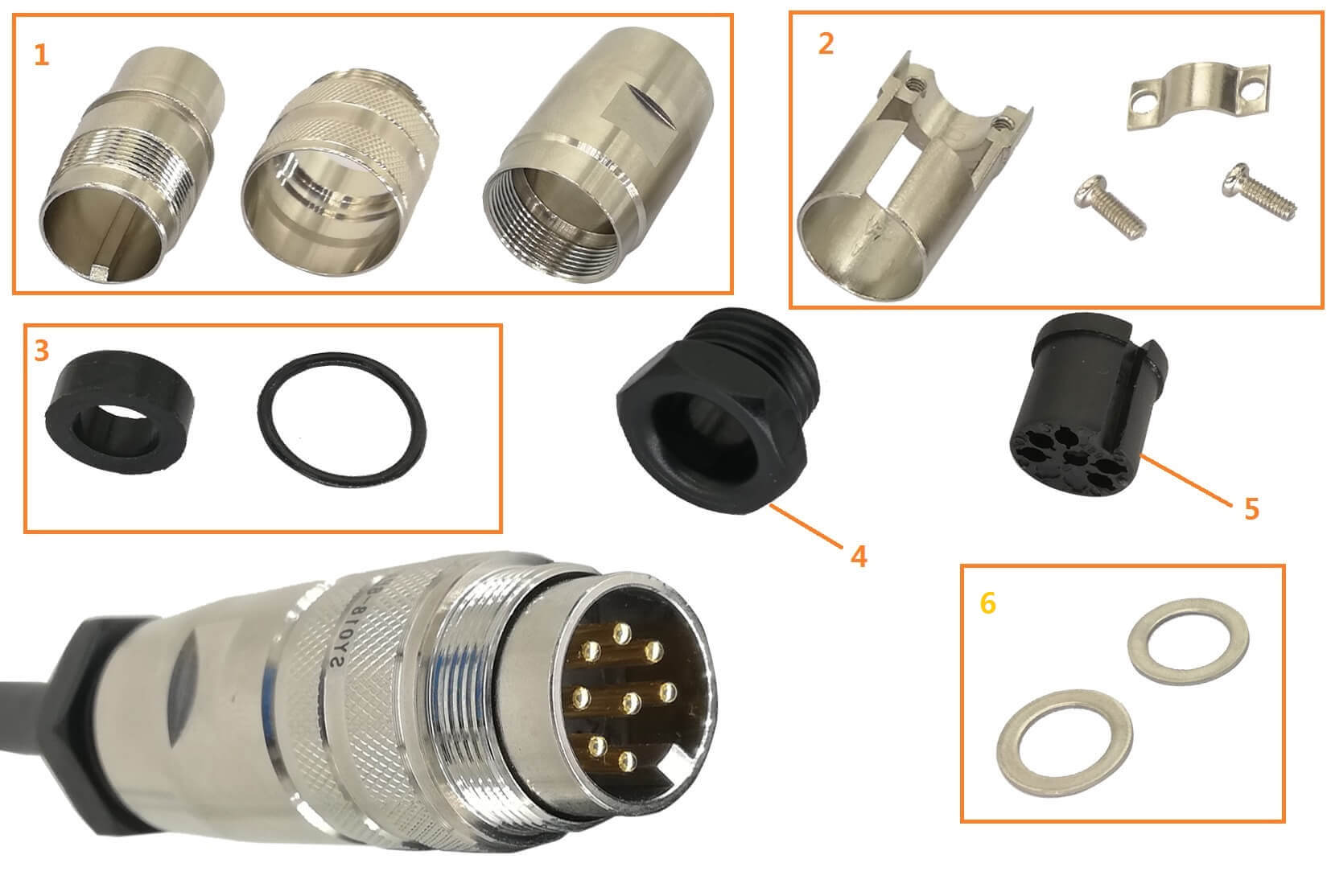

All components

1. Housing, material copper, nickel plated

2. cable fixing kits, Zinc alloy material, screws are stainless steel

3.O-rings, Silicone material, for waterproof sealing

4. Nuts, POM plastic

5.Insulator, PBT plastic

6.Washes, stainless steel materials

7.Contactor, copper materials, gold plated

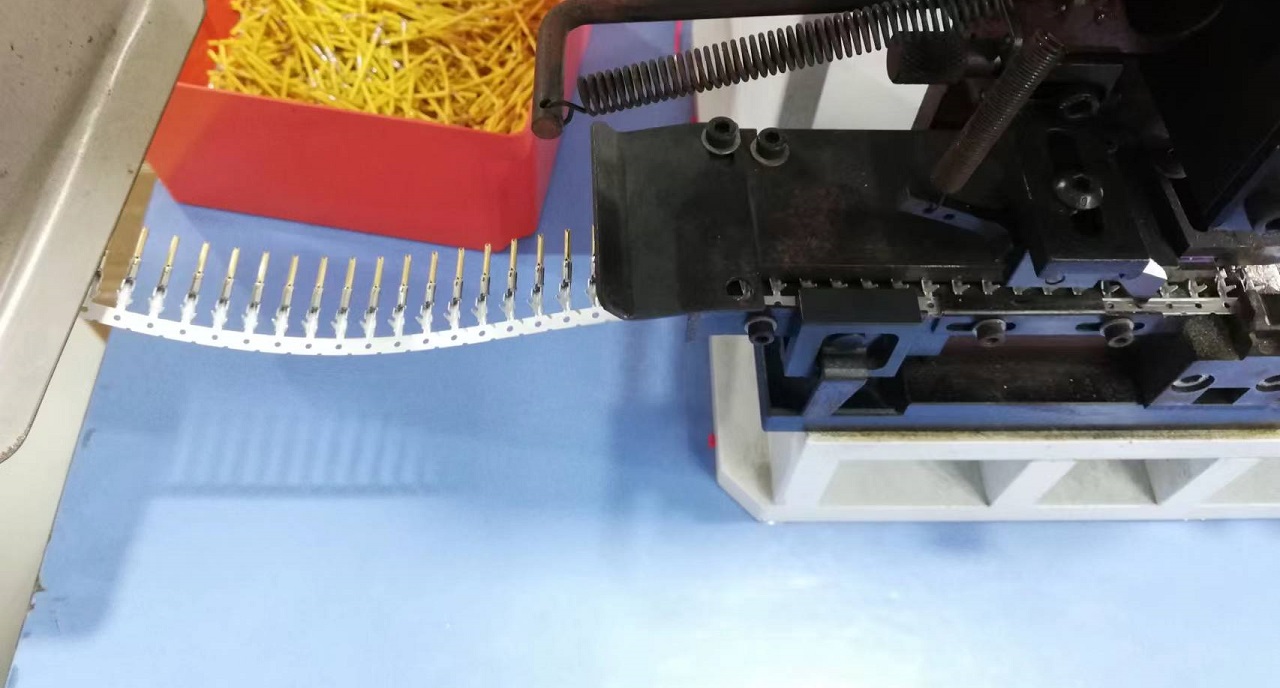

   We are a company specializing in the design and manufacture of injection molds and connectors. Founded in 2014, the design and production of metal parts are located in Shenzhen, Guangdong Province, and the production and assembly of plastic and rubber accessories are located in Dongguan, Guangdong Province.
The company has more than 80 professional engineering and technical personnel, more than 300 industrial workers, and a quality team of more than 40 people. We work together to provide one-stop services for plastic and metal products to customers around the world.
