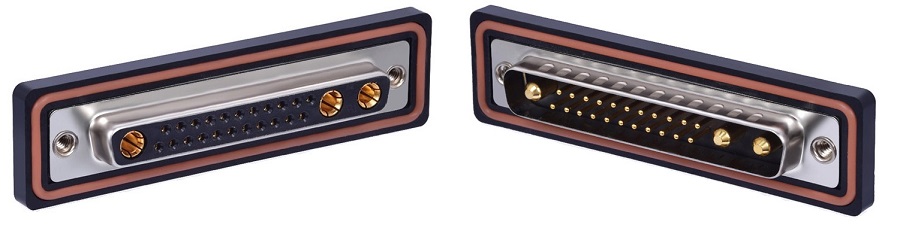

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission

Description

Bede’s 25W3 D-Sub series pioneers hermetic hybrid connectivity with military-grade IP67 sealing, integrating 25 contacts (3 coaxial + 22 power) in a standard D-Sub configuration. Designed for harsh-environment systems demanding uncompromised signal integrity alongside dust/fluid resistance.

Applications:

▣ Outdoor Robotics: Agricultural drone powertrain control in dust/moisture
▣ Marine Electronics: SONAR array pressure-equalized interfaces
▣ EV Charging: DC fast charger outdoor plug-in modules
▣ Oil & Gas: Downhole sensor telemetry junctions

1. Configuration 25-pin (3 RF + 22 power)
2. RF Impedance: 80Ω ±5%
3. Power Contact Material: machined brass
4. Waterproof : IP 67
5. Mating Cycles: 500 Cycles
6. Flammability Rating: UL94 V-0

Rated current

Four rated currents are available, refer to the figure below
