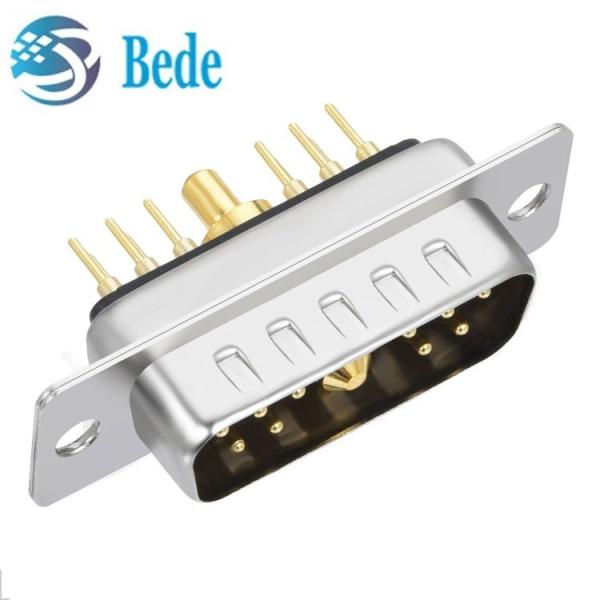

11W1 Combination D Sub Connectors Male / Female Mixed High Current And Coaxial Signal

Description

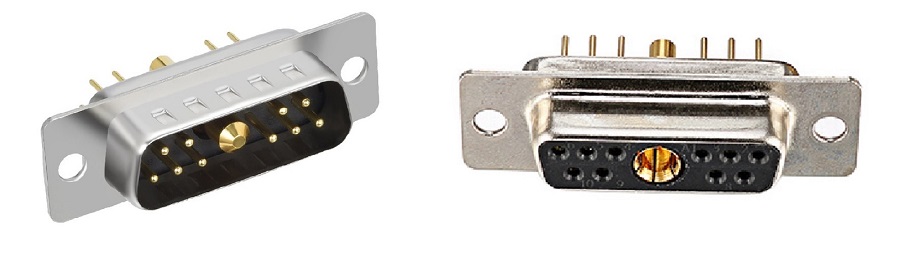

This 11W1 mixed contact connectors (male and female) is designed around the standard D-Sub shell sizes with the possibility to have a blend of contacts such as signals with power, or high voltage contacts, which brings the advantage of an industry standard I/O interconnect product. All contact Pins of male and female are brass machined and with Ni-Au two plating layers, offer advantages with regard to current carrying capacity, contact variety, suitable plating, and an increased mechanical strength.

Applications:

Machine Manufacturing, Medical, Robotics & Automation, Transportation

Electrical Characteristics

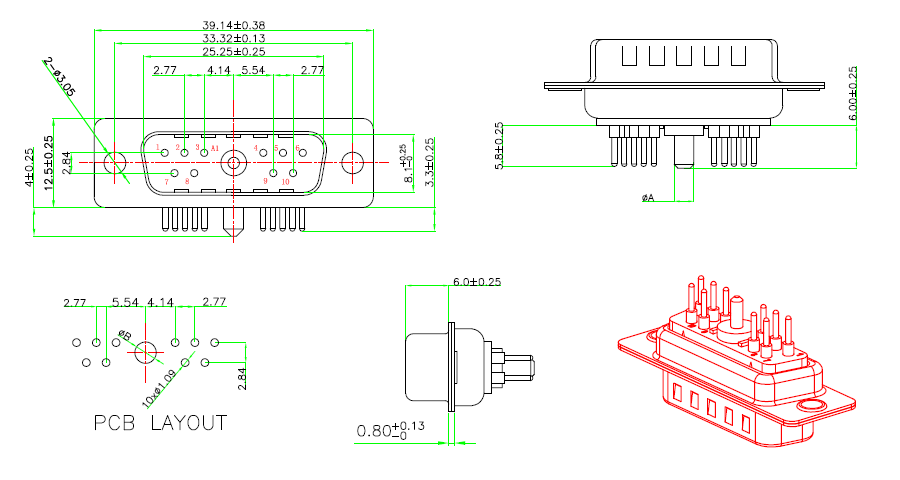

1. High Power Contact Ratings: 10, 20, 30 or 40 Amps optional, check the follwing drawing and table for details
2. Connector Rating with Signal Contact: 3.0 Amps
3. Operating Voltage: 300V
4. High Power Contact Resistance: 2.7 Milliohms Max
5. Withstand Voltage: 1000V AC for 1 Minute
6. Insulation Resistance: 2000 Megohms Min.
7. Temperature Rating: -55°C to +125°C
