FQ 24 Series Waterproof IP67 Circular Connectors 4 5 6 8 10 19 24 Pins

Brief introduction of the FQ connectors
FQ series waterproof circular electrical connectors comply with DZ4Q/RE008-84 standard, adopting high reliability squirrel cage type, advanced structure and high reliability.
Products with low contact resistance, anti-vibration, anti-shock, strong sealing, plug seat connection fast, etc., simple to use, easy to operate, widely used in a variety of electronic equipment between the electrical connection.

Pins Distribution and Rating Current

FQ 24 series connectors are available in 4,5,6,8,10,19 and 26 pins, you can check their current ratings according to the following figure

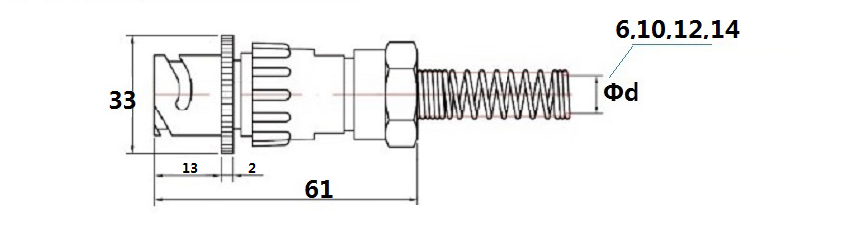

Size of FQ 24 Straight wire spring plug

Size and Cutout diameter of FQ 24 Cable Receptacle With Square Flange

Size of FQ 24 Cable Receptacle With Square Flange

Size of FQ 24 Right Angle wire spring plug

TECHNICAI CHARACTERISTICS
Temperature: -55°C ~ +105°C
Relative humidity: 98± 3% at 40°C
Vibration: 10-2000HZ, 150m/s²
Shock : 500m/s²
Atmospheric : 1 KPa
Resistance: 0.1MΩ Min.
Endurance: 500 cycles

FQ Connectors Industrial Circular Series

How to inquiry and buy

Please tell us the code and quantity as shown in the picture below and we will offer you the best price and services.
