    Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets

    Ask Lasest Price
    Brand Name : BEDE
    Model Number : GX12-SF-5 6 7
    Certification : CE
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 6000 sets per day
    Delivery Time : within 48 hours
    • Product Details
    • Company Profile

    Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets

    Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets

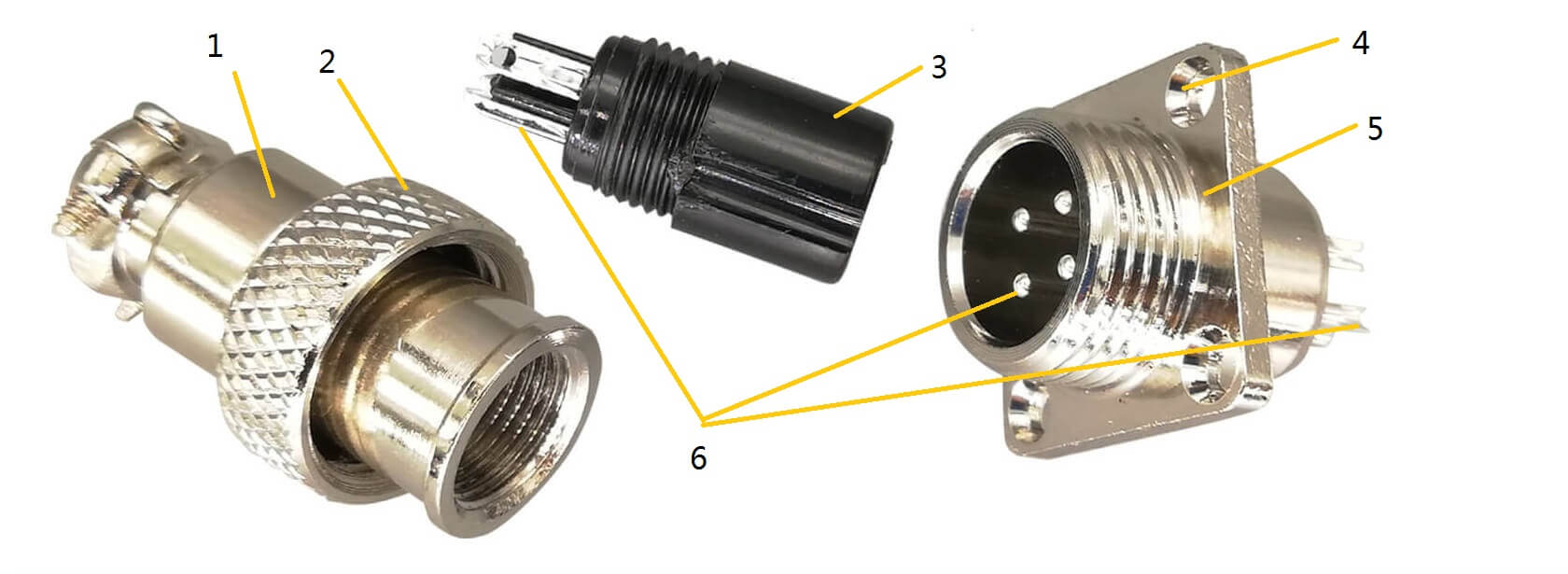

    Structure


    1. main body, zinc alloy

    2. nut, fix the male and female after connection

    3.Insulator, bakelite material

    4.screw hole in flange, diameter 2.5mm

    5, male connector plug, zinc alloy material

    6,contact pins, brass material with silver plated



    Electrical data

    Pinsrated currentrated voltageWithstand voltageContact resistancesuit temperature
    53A150VAC 1500V*1min0.003Ω-50℃~ +70℃
    63A150VAC 1500V*1min0.003Ω
    73A150VAC 1500V*1min0.003Ω

    Similar products

    GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof


    Feature Of Aviation Connector

    1. Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
    2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
    3. Soldering connection: proven connection technology for a large selection of different conductors
    4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
    5. High temperature 260 degree ,solder reflowing
