Copper Shell M12 Circular connector IP68 Cable To Cable Docking Connector 2~7 Pin

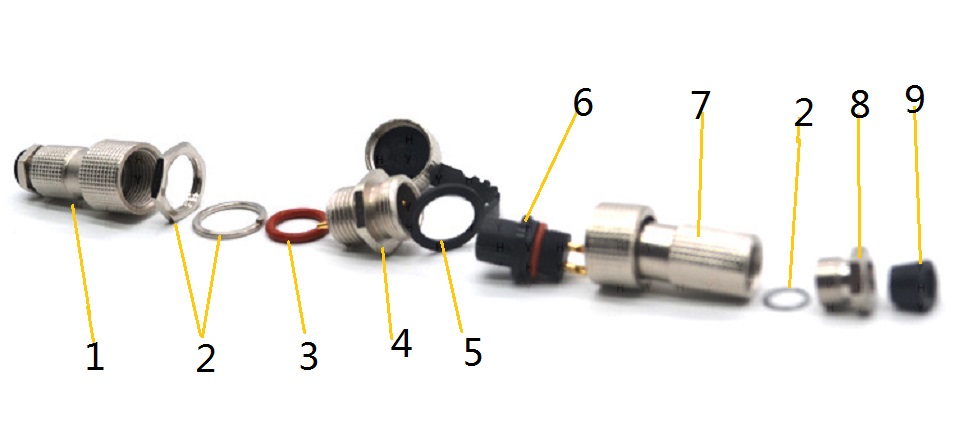

Structure

1.housing of male connector, shell material is copper with chrome plated,

2.Nut and washer, nut material is copper with chrome plated, washer material is stainless steel

3.O-rings for waterproofing

4.male connector, contact pins material is brass with gold plated,shell material is copper with chrome plated,

5,protactive cap

6.female connector, black color bakelite shell and gold plated contact pins

7.Housing of female connector, copper with chrome plated

8,Nut, copper with chrome plated, gripping the cable with 7&9 together for waterproofing,

9, Rubber sleeve

Notice: It is critical that all nuts are tightened after connection, otherwise the waterproofing effect may be adversely affected

Electrical data

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
