GX 20 Connectors Male And Female Set 9 10 12 14 15 Pin With Circular Flange

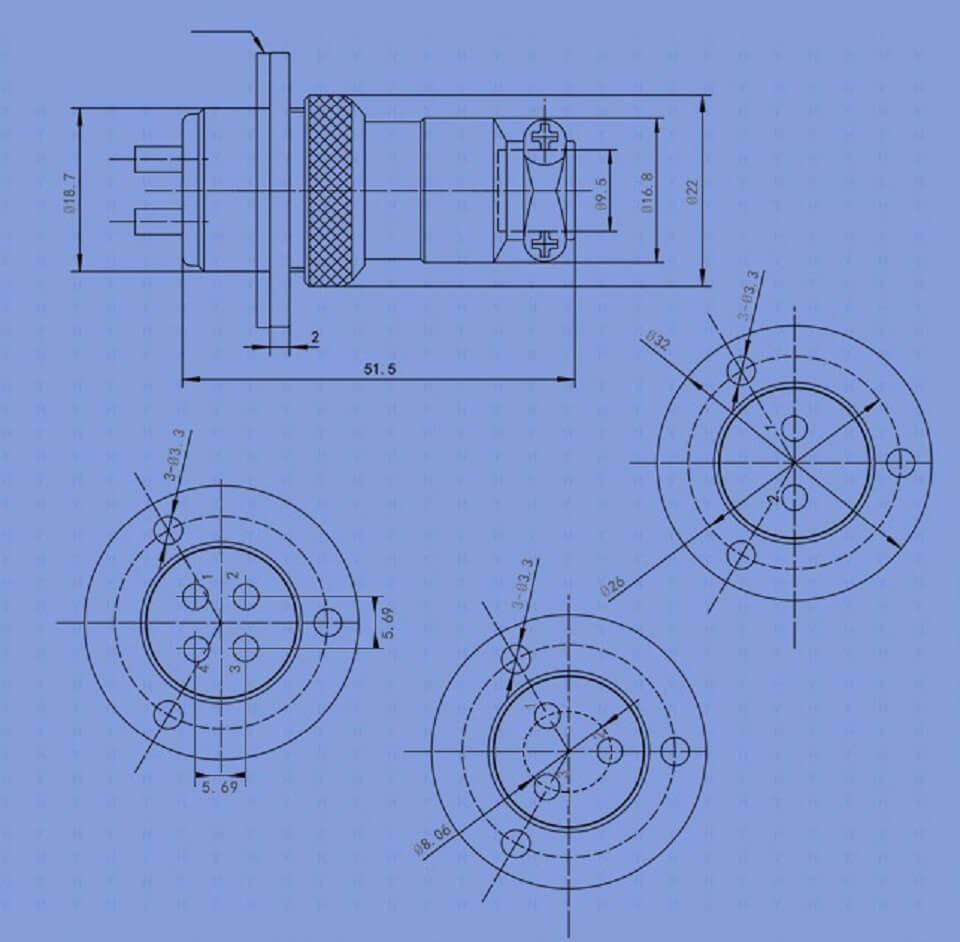

Structure

1. Silicone pad, used for waterproofing between the male end and the panel, you can choose whether it has a dust cover according to your needs

2. Male end, mounted on panel

3. spring washers, nut and screw, stainless steel material, for fixing male end to panels

4. Female end,

5. Housing, for fixing female end and cable, Zinc alloy material

6. Contactor, copper material, silver palted,

Description

1.9/10/12/14/15 pins in stock, 2/3/4/5/6/7/8 pins in stock

2. Mounting hole size: M19

3. Applicable temperature: -50℃ ~ +70℃

4. wiring Type: welding

5.Panel mounting method: fixing by screw and nut,

6.Complete with accessories, coming with spring washers, nuts and screws

7.Widely used in aviation, navigation, industrial control, testing instruments and other fields

Electrical parameters

Similar product

Other types of GX20 products are available, please contact us or back to the product catalog to know more
