GX 20 Connector Docking Type Plug And Socket Kits 8 9 10 12 14 15 Pins 200V 5A

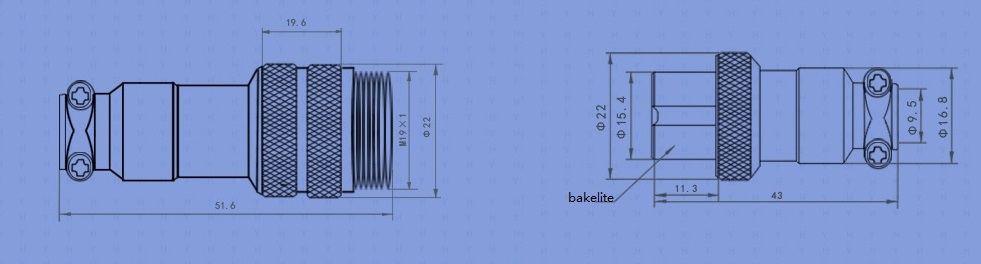

Structure

1. Housing for male end, zinc alloy materials,

2. Contacter, copper material, silver plated, good electrical conductivity and low contact resistance(0.003Ω).

3. Nut for locking male end and female end

4. Nut for fixing male end and housing

5. Male part, Solder one end of the wire, and connect the other end with the female part

6. Bakelite, main bady of female end,Insulation resistance 1000MΩ

7. Housing for female end, zinc alloy materials

Description

1. 8/9/10/12/14/15 pins for your opinion

2. Applicable temperature: -50℃ ~ +70℃

3.Widely used in aviation, navigation, industrial control, testing instruments and other fields

Electrical parameters

Similar product

Other types of GX20 products in stock, please contact us or back to the product catalog to know more
