Rear Mounting Style Aviation connector male and female kits 6~10 Pins 200V 4A

Product Description

1. a panel to wire connetor kits, male connetor for pannel mounting and female connetor for wire welding

2. panel mounting style is rear mounting, fasten with nuts after passing through the panel mounting holes

3. Military quality, fixed with nuts after connection, no falling off

4. Suitable for -50 ~ +70℃ temperetrue

5. suitale cable diameter Φ7.5mm

6. main body material is nickel plated zinc alloy,lightweight and sturdy

7. contact pins material is brass with silver plated,high conductivity and low contact resistance

Electrical data

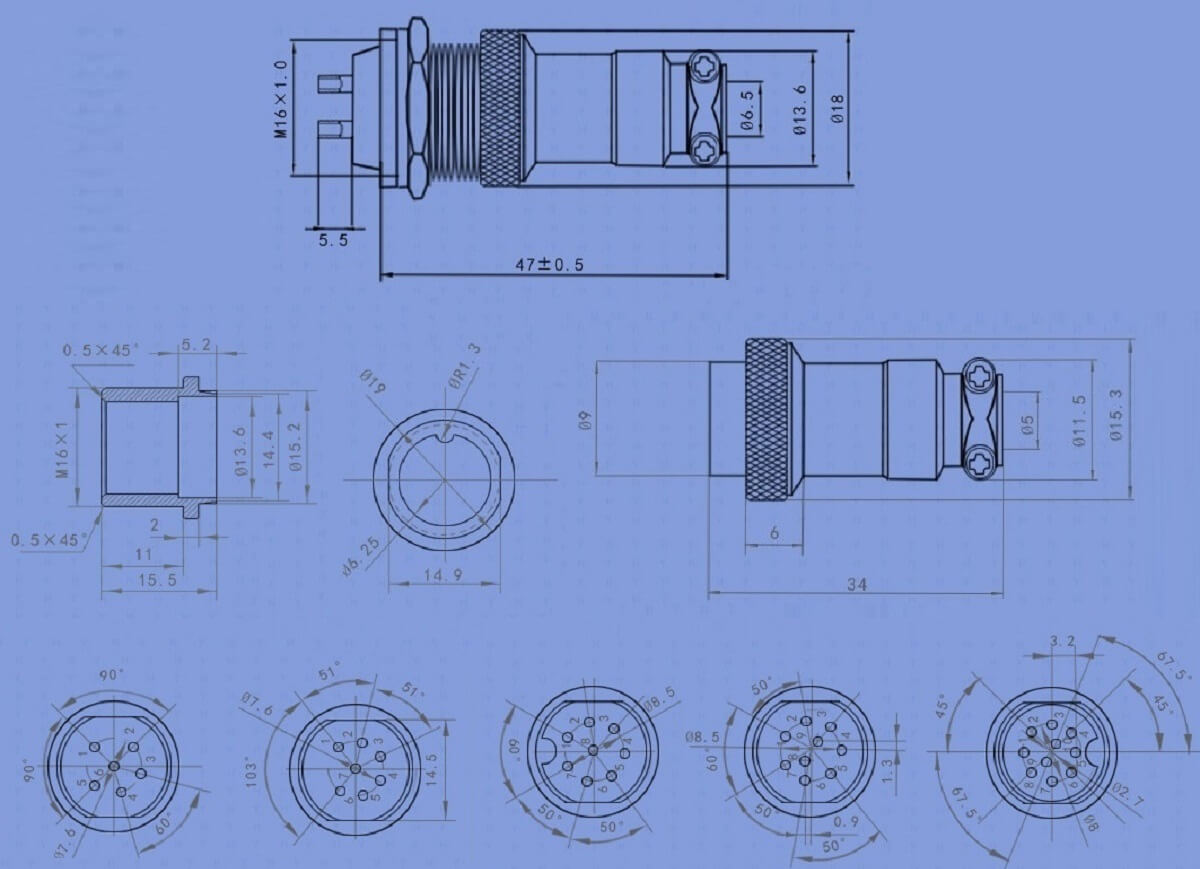

Size and pins location

Product size and pins location as following picture, customization is welcome, please feel free to contact us.

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Rear mounting model

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting
