IP68 Waterproof Cable Connector X type 4-Channel 3-poles Ideal for 2 or 3 Pin Wires

Description

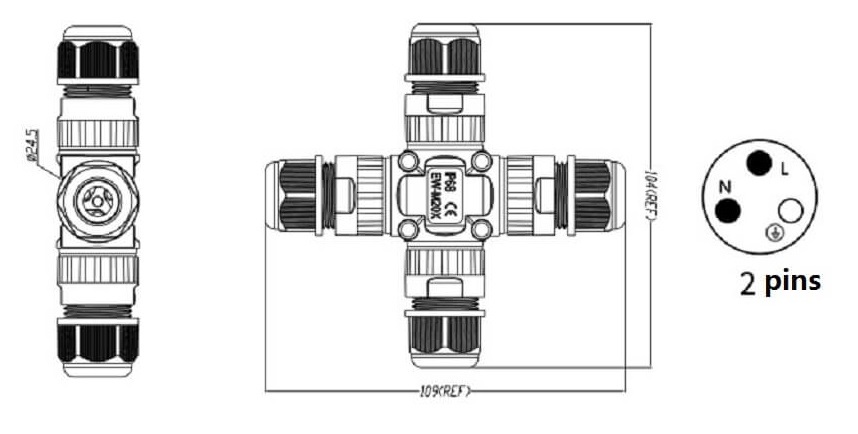

This X shap waterproof connector is a outdoor junction box, can be used to repair and extend power cables, 4-Channel 2-poles, include "live wire"&"neutral wire", two sizes of rubber ring can be chosen, forFor Ø5-9mm and Ø9-12mm cables respectively, wire diameter is Ø0.5-2.5 mm²(AWG24-13).

Material

1. The casing is made of nylon PA66 with high temperature resistance( -40° C - 110° C) and flame retardant rating UL94-V0
2. The inner conductor is cooper core, filling for better abrasion resistance and electronic conductivity; Rated voltage: Max 450v, rated current: Max 24A
3. The sealing ring material is nitrile rubber

Application

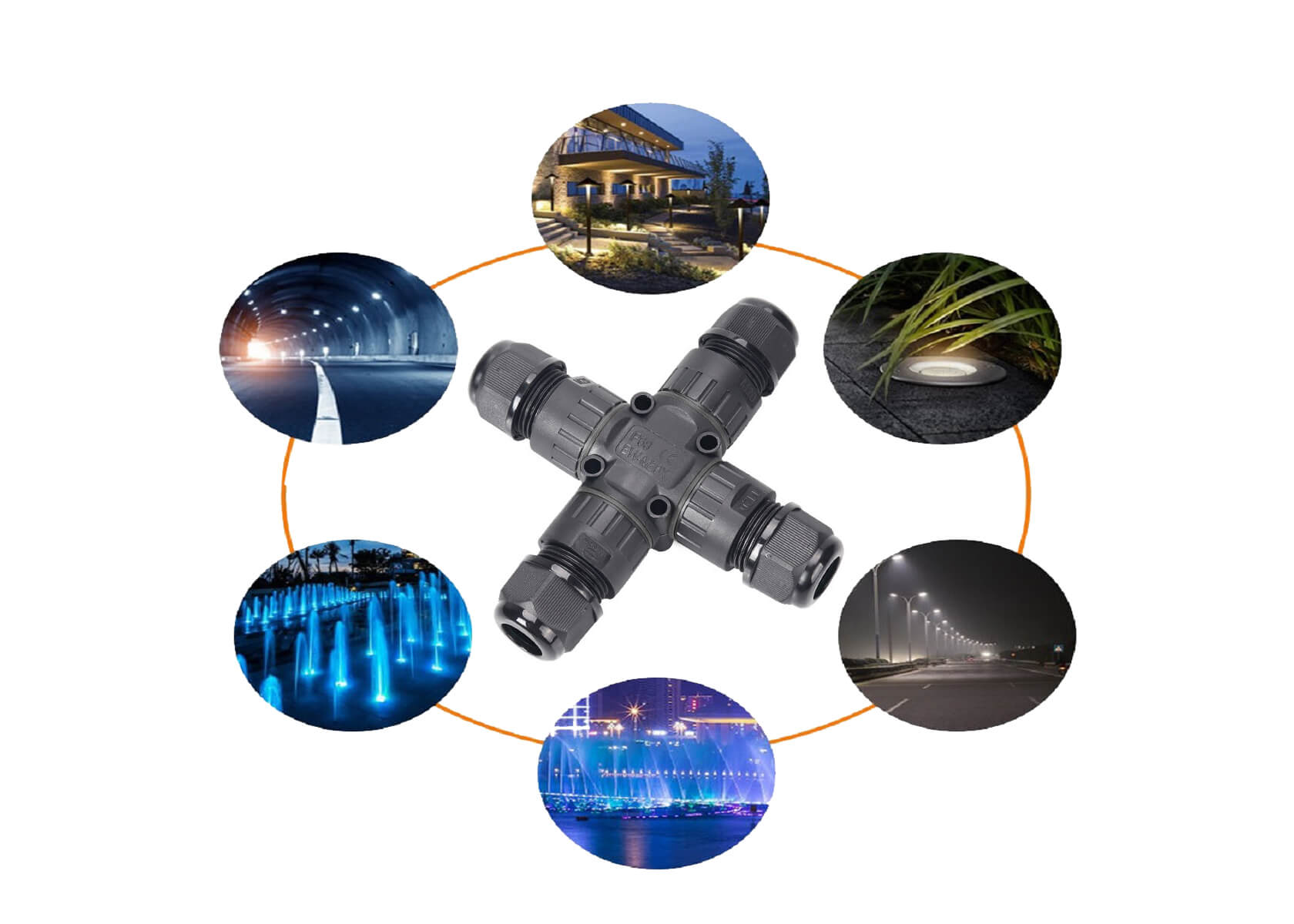

Suitable for coastal, river or underwater engineering, underground engineering.

Suit for Indoor or outdoor Cable connection,Such as tri-proof lights,garden lights,tunnel lights,led flood lights,landscape lights,wall lamps,high bay,Canopy lamps,Machine Power Cable Connection,Vehicle Cable Connection.etc.

How to use

1. Unscrew the nut and take out the terminal
2. Strip the insulation layer of the wire, the outer layer is 19~23mm, and the inner layer is 8~10mm
3. Connect the wires from the output in parallel and insert into the terminal block, then tighten the screws
4. Insert the wire of the input end into the corresponding hole of the terminal and tighten the screw
5. Tighten the waterproof nut to complete
