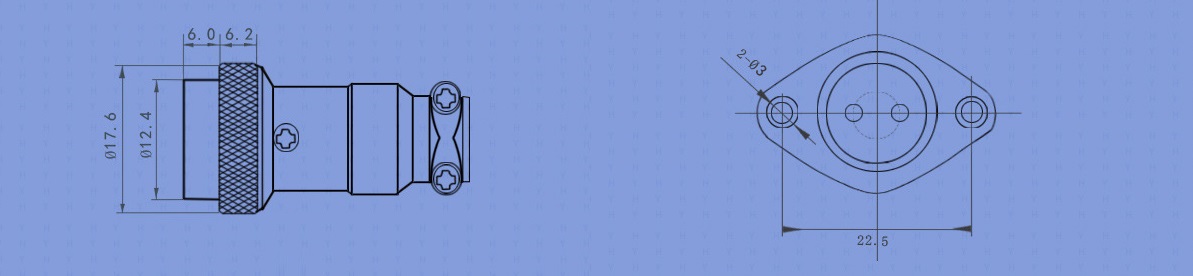

GX16 Aviation Connector Panel Mounting Connector Sets With Rhombus Flange 2~10 Pins

Product structure

1.Contact pins, brass material with silver plated,

2.panel mounting end, male connector(the end be female connector is available, please notify us when you place an order)

3. Insulators,female connector, bakelite material,

4.Nut for fixing male and female connector after connection

5.Housing of female connector, Zinc alloy materials with zinc plated

Electrical data

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Rear mounting model

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle

10.Waterproof cable docking model

11.Waterproof panel mount model
