One-Stop Connector and Injection Solution Provider
4 Years
| Ask Lasest Price | |
| Brand Name : | BEDE |
| Model Number : | g×16-7-1 |
| Certification : | RoHS |
| Price : | negotiation |
| Payment Terms : | T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability : | 3000 sets per day |
| Delivery Time : | Within 3 days after payment |

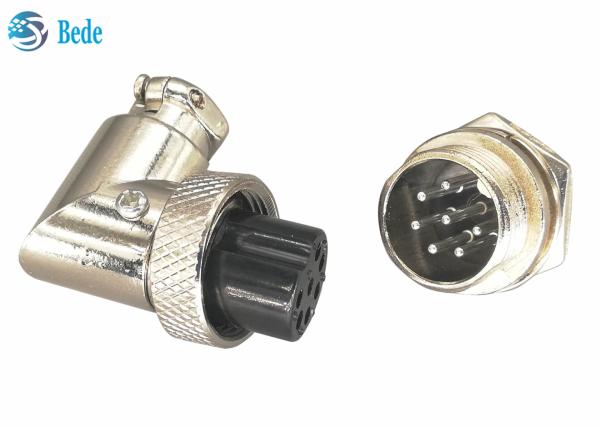

Silver Plated 7 Pins gx16 90 Degree aviator connector Male And Female Sets
Description
Aviation connectors are widely used in Aviation and Navigation, industrial control, outdoor lighting, oil
extraction because of their reliable connection, insulation and
withstand voltage.
This page is about g×16 7pins aviation connector set, including 1 male plug, 1 female socket, and matching lock screws and nuts.
Material data:
| Number of wires | Wire connection | Shell material | Contact material | Opration temperature |
| 7 pins | welding | Zinc alloy | Copper plating silver | -50~+70℃ |
Electricity data
| Rated current | Rated voltage | Operating Voltage(AC V) | Withstand voltage(AC V) 1min | Insulation impedance(MΩ)DC500V | Contact resistance |
| 4A | 125V | 200 | 1500 | 1500 | ≤0.005Ω |
|
|
