AISG RET Cables AISG Rear Panel Mounting Male Contacts To 5 Pins Crimp Terminal
Structure
1. contact pin of AISG connector, brass with gold plated
2.housing of AISG male connector, copper with nickel plated
3.O-ring for waterproof, rubber material
4. Epoxy glue to seal wires and waterproof
5.heat shrink tube, color and length can be customized
6. cable jacket with Shield, cable gauge 5*22AWG
7.contact pin of crimp terminal, brass with silver plated
8. 6 pins crimp terminal, the 3rd pin not connect. Terminal block of this end can be customized

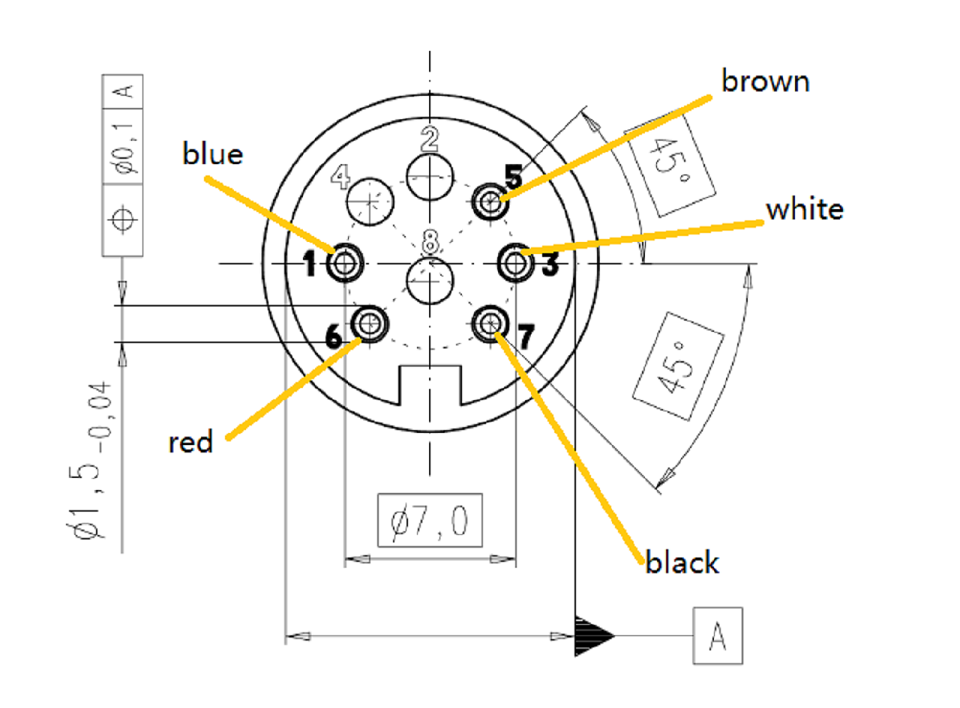

Pins location
Male pin layout is based on DIN EN 61076-2-106:2012-04 variant
08-a. The male pins 2, 4 and 8 are not in use for AISG
applications. Male pin 1 shall not be used for new constructions,
only needed to keep compatibility to older versions. Pin assignment
according AISG specification.
![]() |
