Male To Female RET Cables 10 Meter Length 8 Conductors MCU To RCU

Description:

Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. This RET Cables are manufactured according to the AISG Standard (AISG C 485), used for feeding signal and power from the controller to the Remote Control Unit (RCU). The fully integrated cable assembly has an 8 pin layout, with 4, 5 or 6 loaded contacts.

Quick details:

Features:

1. 720 h salt spray resistance

2. IP68 protection without tape

3. EMC with 30 db

4. Extreme temperature resistance -40℃ ~ +80 ℃

5. Vibration resistance

6. AISG C-485 compliant

7. 8 pin layout (4, 5 or 6 contacts loaded)

8. Terminated with male / female connectors

9. Socket screw lock coupling system

About the wire:

• 4 x 0.75mm²(20 AWG) stranded (power) 2 x 0.25mm²(23 AWG) twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
• 4 x 0.41mm²(21AWG) stranded (power) 2 x 0.21mm² (24 AWG)twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
• The above two cable sizes for your opinion
• The outer jacket is available in two materials for your opinion, PU or PVC
• Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%

Applications:

• Remote Electrical Tilt (RET) System Applications or Remote Control Unit (RCU)
• Antenna Control Unit for AISG Compliant Systems
• Tower Mounted or Masthead Amplifiers with AISG Interface (TMA)
• Network Control with Integrated AISG Interface

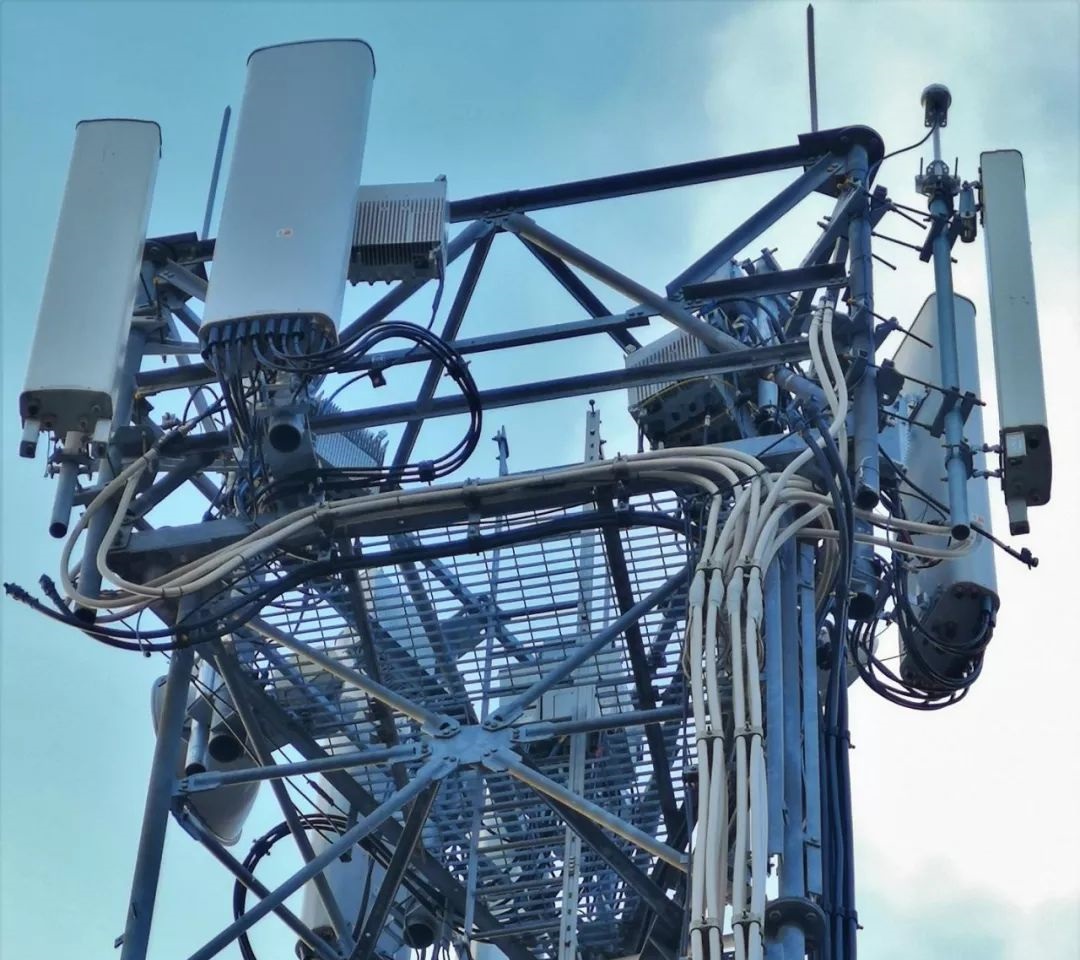

• Antenna Base Stations
