WS20 Circular Connectors with square flange and dust cover 2 3 4 pin 500V 25A

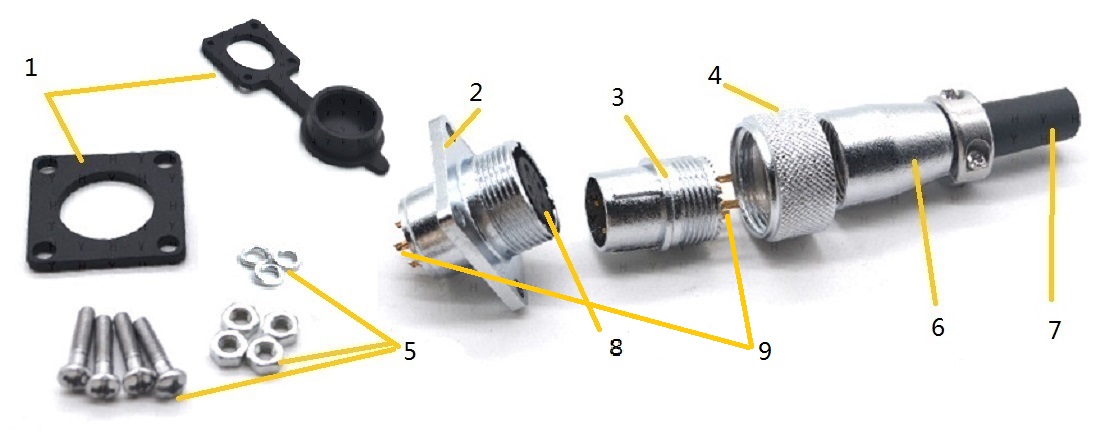

Product structure

​1. Rubber pads and dust cover, two models as shown in the figure below, with or without dust cover as required

2. Housing for panel mounting end, zinc alloy with chrome plated,

3. Housing for wiring end,zinc alloy with chrome plated,

4. Nut,zinc alloy with chrome plated, used for fixing male and female after connection

5. Screws, washers and nuts, stainless steel material, used for panle mounting

6. Housing for wire,zinc alloy with chrome plated,

7. Cable protection cover, rubber material,

8. Insulator, PPS engineering plastic

9. Contact pins, brass material with gold plated

Quick detail

• pins: 2 3 4
• applicable temperature:-40℃ ~ +75℃
• applicable wire: 11AWG
• Plug and unplug times: ≥500
• The default delivery is the A model in the picture below, if the B model is required, please contact us

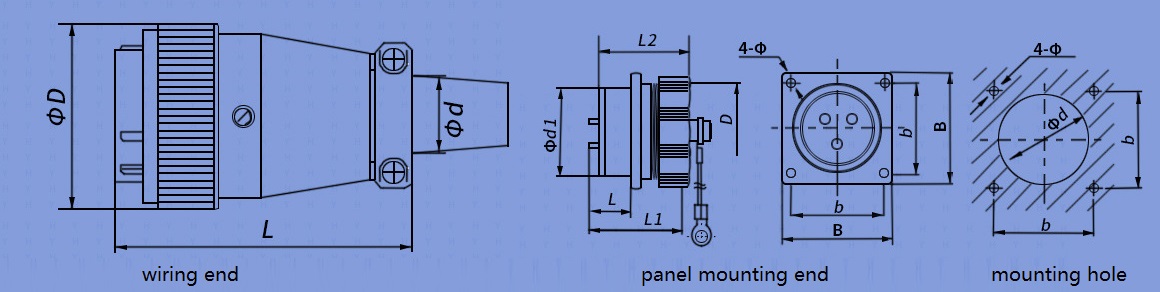

Product Size

Wiring end: ΦD=25.8mm L=49.5mm Φd_max=11.6mm

Panel mounting end: Φd1=M20 D=M22 L=14mm L1=28mm L2=23mm

B=22mm Φd=20.5mm b=22mm Φ=3.2mm

Electrical data
