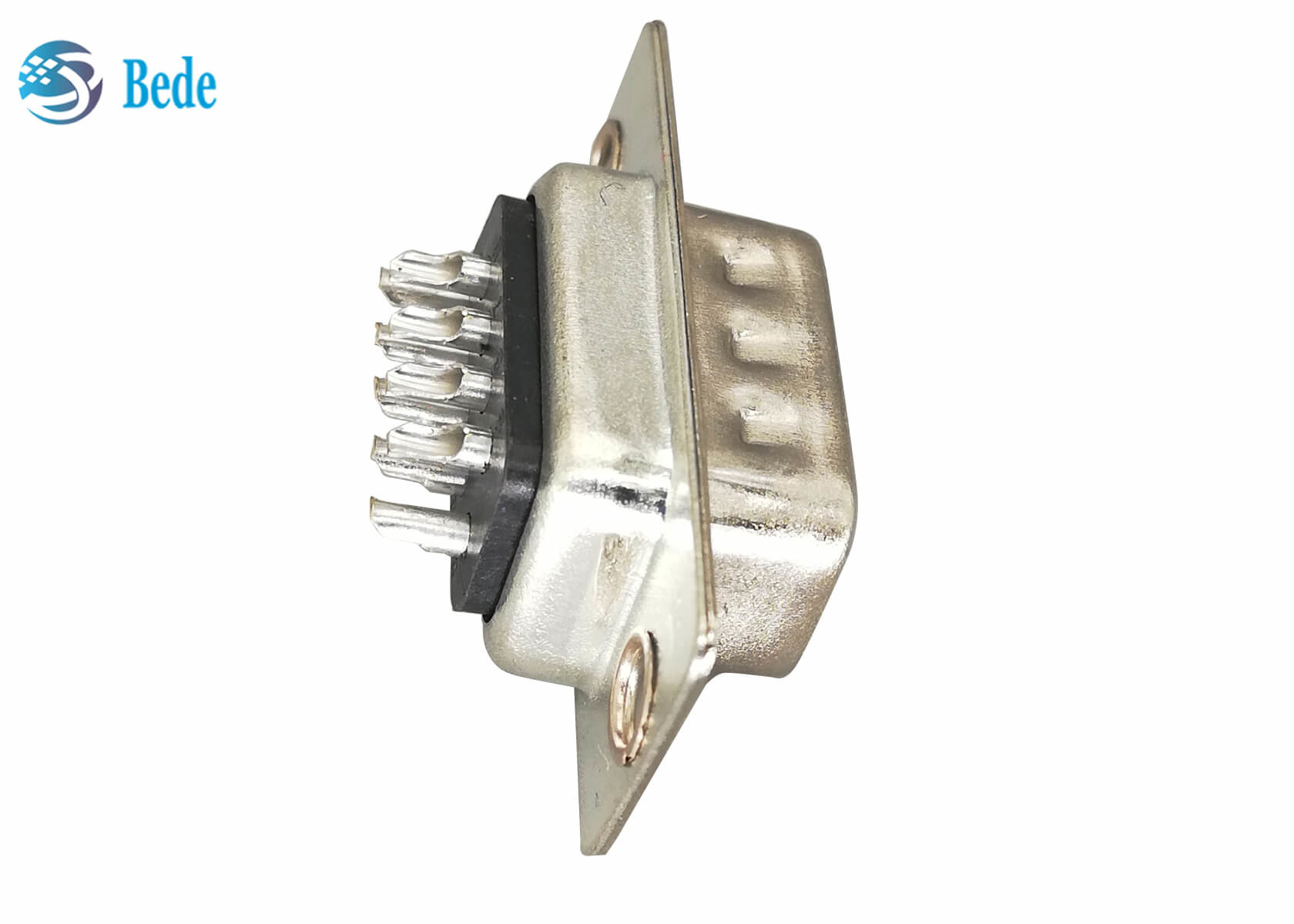

    9 Pin Male DB9 Plugs D Sub Connectors Welding Type CE RoHS

    Ask Lasest Price
    Brand Name : BEDE
    Model Number : DB-9-M
    Certification : CE RoHS
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 800 pcs per day
    Delivery Time : within 3 days after payment
    • Product Details
    • Company Profile

    9 Pin Male DB9 Plugs D Sub Connectors Welding Type CE RoHS

    D Sub Connector 9 Pin Male DB9 Plugs Welding Type


    Description:

    1. DB9 plug for computers, communications, medical equipment, cables, aviation, digital, machinery and equipment, game consoles
    2. The shell is SPCC, the front is nickel plated 1.0um, the rear is galvanized 3um
    3. The pins material is brass, the contact part is plated with gold 3um, and the welding part is galvanized 3~5um
    4. Insulation part is PBT plastic + 30% glass fiber, flame retardant grade UL94-V0

    9 Pin Male DB9 Plugs D Sub Connectors Welding Type CE RoHS

    Electrical properties

    1. ​Rated current: 5A
    2. Withstand voltage: 1000Vr.m.s, 1mA, 60S
    3. Insulation resistance: ≥5000MΩ
    4. Contact resistance: ≤15mΩ

    Mechanical behavior

    1. Insertion force: ≤3.3N/pin
    2. Pull out force: ≥0.3N/pin
    3. Mechanical life: ≥50 times

    Environmental parameters

    1. Operating temperature: -40 ~ 100 ℃
    2. welding temperature: 245±5℃, 10S

    9 Pin Male DB9 Plugs D Sub Connectors Welding Type CE RoHS
