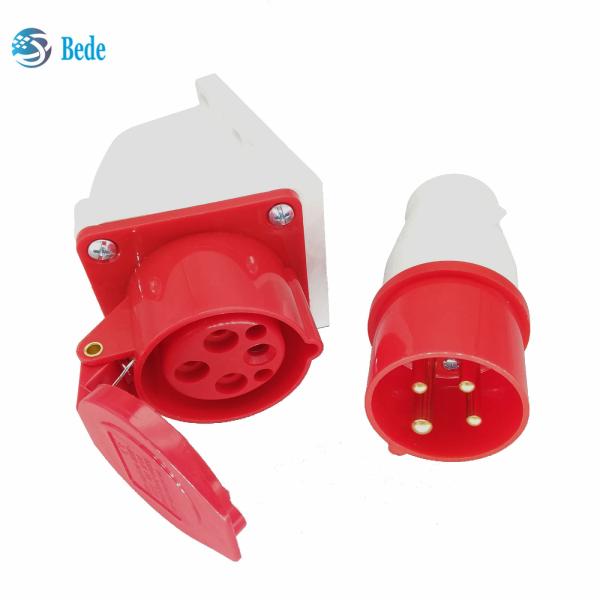

    Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44

    Ask Lasest Price
    Brand Name : BEDE
    Model Number : ABD024+ABD124
    Certification : CE,RoHS
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000pcs per day
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44

    Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44


    There are many types of IEC 60309 sockets, outlets, plugs, connectors and application inlets, they differ with respect to voltage, current, frequency rating and number of pins. Plugs have round pins, arranged in a circle, all plugs and sockets have a protective earth (PE) connection, the diameter of it is always 2 mm larger than the other pins, position of the earth pins vary between different types of plugs, can be regarded as a clock.

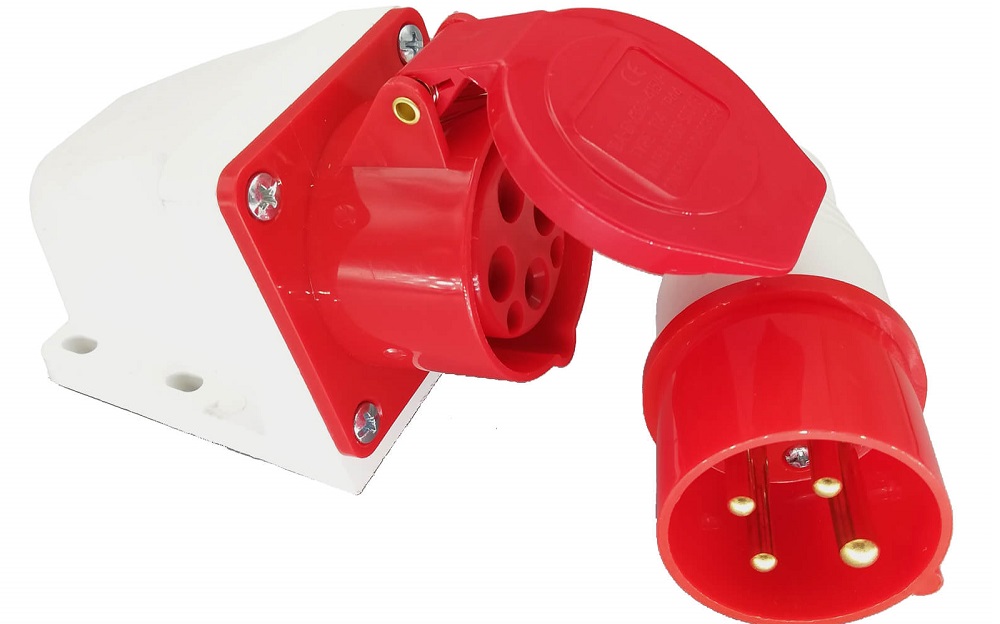

    This page is a set of plugs and wall mounting type sockets, the sockets are generally mounted on the flat suiface, such as equipment (chassis) housing and the wall. Commonly used industries are: power distribution boxes, distribution cabinets, injection moulding machines, packaging machines, showrooms, etc, for power transmission and distribution.


    Quickly details of the CEE plug and socket


    PinsRated voltagephaseRated currenthousing materialpins materialsEarth position
    3p+E380~415V3 phase16 AmpPPBrass6h

    Replaceable CEE sockets

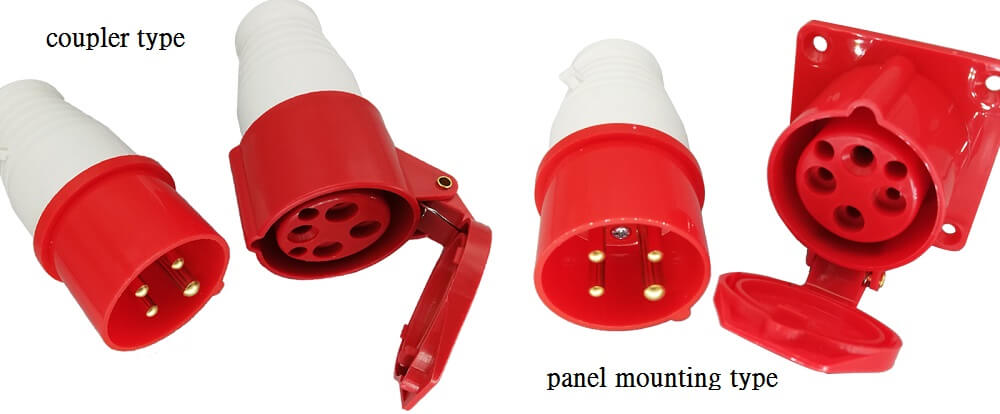

    This plug also be used with panel mounting socket and coupler
